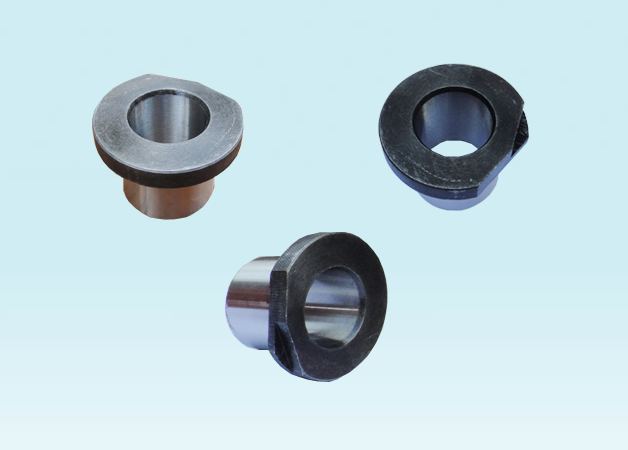

标准可换钻套尺寸表(GB2264-80)
d 公差F7 D 公差m6 D1 H h h1 C C1 C2 e m 单价（元）
1.5～1.9 +0.006～+0.016 8 +0.006～+0.015 15 16 8 3 0.5 1 1.25 1.5 4.2 24
2～2.9 +0.006～+0.016 8 +0.006～+0.015 15 16 8 3 0.5 1 1.25 1.5 4.2 24
3～3.9 +0.006～+0.016 8 +0.006～+0.015 15 16 8 3 0.5 1 1.25 1.5 4.2 24
4～4.9 +0.010～+0.022 10 +0.006～+0.015 18 20 8 3 0.5 1 1.25 1.5 5.5 20
5～5.9 +0.010～+0.022 10 +0.006～+0.015 18 20 8 3 0.5 1 1.25 1.5 5.5 16
6～6.9 +0.013～+0.028 12 +0.007～+0.018 22 20 10 4 0.5 1 1.5 2 7 13
7～7.9 +0.013～+0.028 12 +0.007～+0.018 22 20 10 4 0.5 1 1.5 2 7 13
8～8.9 +0.013～+0.028 15 +0.007～+0.018 26 28 10 4 0.5 2 1.5 2 9 14
9～9.9 +0.013～+0.028 15 +0.007～+0.018 26 28 10 4 0.5 2 1.5 2 9 14
10～10.9 +0.016～+0.034 18 +0.007～+0.018 30 28 10 4 0.5 2 1.5 2 11 17
11～11.9 +0.016～+0.034 18 +0.007～+0.018 30 28 10 4 0.5 2 1.5 2 11 17
12～12.9 +0.016～+0.034 22 +0.008～+0.021 34 36 12 5.5 0.5 2 2.5 2 12 19
13～13.9 +0.016～+0.034 22 +0.008～+0.021 34 36 12 5.5 0.5 2 2.5 2 12 19
14～14.9 +0.016～+0.034 22 +0.008～+0.021 34 36 12 5.5 1 2 2.5 2 12 20
15～15.9 +0.016～+0.034 26 +0.008～+0.021 39 36 12 5.5 1 2 2.5 2.5 14.5 25
16～16.9 +0.016～+0.034 26 +0.008～+0.021 39 36 12 5.5 1 2 2.5 2.5 14.5 25
17～17.9 +0.016～+0.034 26 +0.008～+0.021 39 36 12 5.5 1 2 2.5 2.5 14.5 25
18～18.9 +0.020～+0.041 30 +0.008～+0.021 46 45 12 5.5 1 3 2.5 2.5 18 26
19～19.9 +0.020～+0.041 30 +0.008～+0.021 46 45 12 5.5 1 3 2.5 2.5 18 26
20～20.9 +0.020～+0.041 30 +0.008～+0.021 46 45 12 5.5 1 3 2.5 2.5 18 28
21～21.9 +0.020～+0.041 30 +0.008～+0.021 46 45 12 5.5 1 3 2.5 2.5 18 28
22～22.9 +0.020～+0.041 35 +0.009～+0.025 52 45 12 5.5 1 3 2.5 2.5 21 30
23～23.9 +0.020～+0.041 35 +0.009～+0.025 52 45 12 5.5 1 3 2.5 2.5 21 30
24～24.9 +0.020～+0.041 35 +0.009～+0.025 52 45 12 5.5 1 3 2.5 2.5 21 30
25～25.9 +0.020～+0.041 35 +0.009～+0.025 52 45 12 5.5 1 3 2.5 2.5 21 40
26～26.9 +0.020～+0.041 42 +0.009～+0.025 59 56 12 5.5 1 3 3 2.5 21 40
27～27.9 +0.020～+0.041 42 +0.009～+0.025 59 56 12 5.5 1 3 3 2.5 24.5 40
28～28.9 +0.020～+0.041 42 +0.009～+0.025 59 56 12 5.5 1 3 3 2.5 24.5 40
29～29.9 +0.020～+0.041 42 +0.009～+0.025 59 56 12 5.5 1 3 3 2.5 24.5 40
30～30.9 +0.025～+0.050 48 +0.009～+0.025 66 56 16 7 1 3 3 2.5 27 50
|
|
